20m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine

Khách hàng đánh giá
Máy dễ sử dụng. Sếp rất tốt.

—— Mr.Angolon đến từ Châu Âu

Đây là một nhà sản xuất tốt, một người giao tiếp tiếng Anh tốt, và tôi thích máy móc của bạn. Đó là chất lượng tốt, và đẹp!

—— Mr.Mark đến từ Châu Phi

Nhà cung cấp tốt đẹp! Tôi thích giao hàng nhanh chóng và chu kỳ sản xuất nhanh chóng của bạn, sẽ giữ liên lạc với các bạn.

—— Mr.Jack từ Mỹ

Tôi trò chuyện trực tuyến bây giờ

20m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine

20m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine
20m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine
20m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine 20m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine 20m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine 20m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine 20m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine 20m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine

Hình ảnh lớn :  20m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine

Thông tin chi tiết sản phẩm:
Nguồn gốc: Botou Hebei China
Hàng hiệu: HC
Chứng nhận: ISO
Số mô hình: HC12/17
Thanh toán:
Số lượng đặt hàng tối thiểu: 1set
Giá bán: 15000-39000USD
chi tiết đóng gói: Main machine is nude,the computer control box is packed by carton box
Thời gian giao hàng: 30days
Điều khoản thanh toán: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Khả năng cung cấp: 20 sets/month

20m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine

Sự miêu tả
type: Double Layer Roll Forming Machine Usage: roof
warranty: 1 year
Điểm nổi bật:

sheet metal roll forming machines

,

corrugated roll forming machine

Can't find a reliable supplier for ? Huachen is your best choise.
Cangzhou huachen roll forming machinery Co., Ltd is the manufacturer specilized in metal roofing roll forming machine. We provide an extensive line of products, which includes roof and wall panel machine , roof tile machine, purline forming machine, floor decking machine,gutter forming machine,roller shutter machine etc.

20m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine 0

What's your machine application ?
Our roll forming machines can produce various of steel roof and wall panel, it is a new building materials, the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period, beauty, light weight but high strength.

20m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine 1

Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 1250mm

3. Rollers: 10/17 rows

4. Dimensions: 9.7*1.55*1.91m

5. Power: 4+4kw

6. Rolling material: high grade 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control





Description:



Double layer roll forming machine Main parameter

No.

 Main parameter of Double layer roll forming machine



1

Suitable to process

Color steel plate

2

Width of the plate

1250mm

3

Rollers

upper level :10 rows

Down level :17 rows

4

Dimensions

9200*1550*1910mm

5

Power

4+4kw

6

Rolling material

high grade 45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

20m/min

8

Diameter of the roller

Φ70mm

9

Voltage

380V 50Hz 3phases

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system- cutting

20m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine 220m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine 320m/Min Red Panel Double Layer Roll Forming Machine Roofing Sheet Forming Machine 4

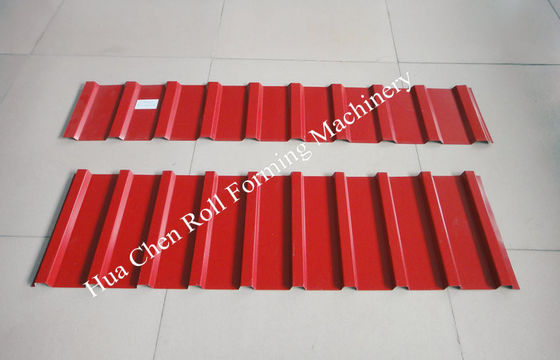

Application



This kind of machine make two types of tile together perfectly, it has reasonable structure, beautiful appearance, with advantage of saving space, easy operate and especially welcomed by the customer  with limit area or site





Competitive Advantage



1. CE certification

2. hydraulic motor drive

3. Exported to more than 70 countries

4. suitable for various kinds of steel plate

5. voltage according to customer request
