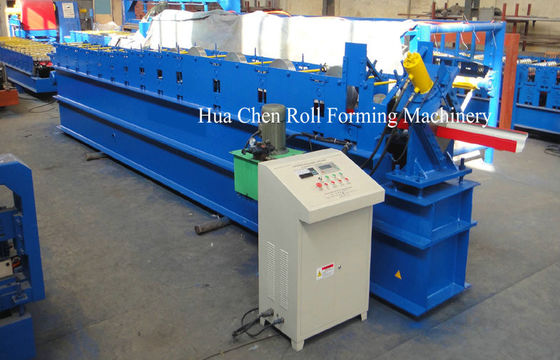

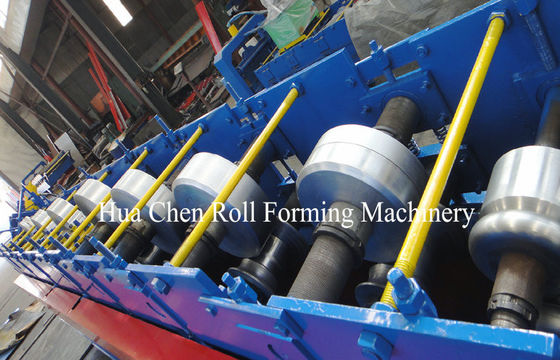

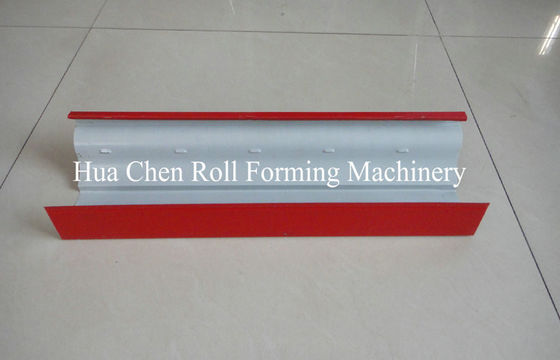

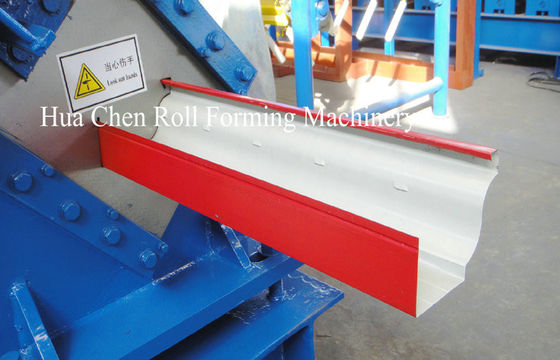

The Ghana style rain gutter roll forming machine cold roll forming machine

Trung Quốc The Ghana style rain gutter roll forming machine cold roll forming machine nhà cung cấp
The Ghana style rain gutter roll forming machine cold roll forming machine nhà cung cấp The Ghana style rain gutter roll forming machine cold roll forming machine nhà cung cấp The Ghana style rain gutter roll forming machine cold roll forming machine nhà cung cấp The Ghana style rain gutter roll forming machine cold roll forming machine nhà cung cấp

Hình ảnh lớn :  The Ghana style rain gutter roll forming machine cold roll forming machine

Thông tin chi tiết sản phẩm:

Place of Origin: Botou Hebei China
Hàng hiệu: HC
Chứng nhận: ISO
Model Number: HC285

Thanh toán:

Minimum Order Quantity: 1set
Giá bán: 8000-29000USD
Packaging Details: Main machine is nude,the computer control box is packed by carton box
Delivery Time: 30days
Payment Terms: 30% deposit by T/T in advance and 70% balance after inspection confirmation before shipment
Supply Ability: 20 sets/month
Contact Now
Chi tiết sản phẩm
Usage: gutter profile: custom
thickness: 0.3-0.6mm size: 4'' 5'' 6''
weight`: 2T warranty: 1 year

The Ghana style rain gutter roll forming machine cold roll forming machine

Machine Sizes 8500mm*900mm*1200mm
Main motor power 4kw
Wall plate 18mm
Thickness 1.5-3mm
Base Frame 250mm
Material of roller 45# steel
Diameter of shaft 60mm
Processing speed 3-6/min
Material of cutting Cr12
Roller station 16Rows
Kind of drive Chain Wheel, Chain
Automatic Computer: Mitsubishi PLC System
Transducer: SAJ
Switch: CHNT
Warranty Period 12 Months
Our company have the series of coloured steel forming machine, including molding machine, concealed roof sheet machine, flat sheet bending machine and so on.



Quick Detail:



1. Suitable to process: Color steel plate

2. Width of the plate: 285mm

3. Rollers: 18 rows

4. Dimensions: 8.6*1.15*1.51m

5. Power: 3+3kw

6. Rolling material: 45# steel(plated chrome on surface)

7. Thickness of the plate:0.3-0.6mm

8. Voltage: 380V 50Hz 3phases

9. Material of the cutting plate: Cr12

10. Hydraulic: 40#

11. Processing precision: Within 1.00mm

12. Control system: PLC control

The Ghana style rain gutter roll forming machine cold roll forming machineThe Ghana style rain gutter roll forming machine cold roll forming machineThe Ghana style rain gutter roll forming machine cold roll forming machineThe Ghana style rain gutter roll forming machine cold roll forming machineThe Ghana style rain gutter roll forming machine cold roll forming machine



Description:



Gutter Roll Forming Machine  Main parameter

No.

   Main parameter of Gutter Roll Forming Machine

1

Suitable to process

Color steel plate

2

Width of the plate

285 mm

3

Rollers

18 rows

4

Dimensions

8.6*1.15*1.51m

5

Power

3+3kw

6

Rolling material

45# steel(plated chrome on surface)

6

Thickness of the plate

0.3-0.6mm

7

Productivity

15m/min

8

Diameter of the roller

Φ66 mm

9

Voltage

380V 50Hz 3pha ses

10

Material of the cutting plate

Cr12

11

Hydraulic

40#

12

Processing precision

Within 1.00mm

13

Control system

PLC control

Equipment components: Man-made uncoiler-roll forming machine-computer control system-hydraulic control system-cutting





Application



This product is widely used in many kinds of industrial factory, civilian buildings, and Roof board for attached part product. It has advantage of pretty appearance, durable using and so on.



Q1. What's your delivery time?
A1:Depending on the type of machine, duration of 1.25 days to 60 days from the date of order.

Q2. Do you have after-sales support?
A2:Yes, we are happy to give advice and we also have skilled technicians available across the world.We need your machines running in order to keep your business running.


Q3. Do you sell only standard machines?
A3:No, most of our machines are built according to customers specifications,using top brand components.

Q4. What will you do if the machine is broken?
A4:Our machine's warranty period is 12months,if the broken parts can't repair,we can send the new parts replace the broken parts freely,but you need pay the express cost yourself.If it is beyond the warranty period,we can negotiate to solve the problem,and we supply the technical support for the whole life of the equipment.


Q5. Can you be responsible for transport?
A5:Yes,please tell me the destination port or address.we have rich experience in transporting.



Q6. How to visit your company?
A6: 1) Fly to Beijing airport, By high speed train From Beijing Nan to Cangzhou Xi (1 hour).
2) Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 h), then we can pick up you.
